Arlington 30" | Metallic Black
FREE SHIPPING on Range Hoods Across Canada! 🍁
✅ SUCTION POWER: Vesta's Arlington 850 CFM 30-inch metallic-black stainless steel under-cabinet range hood features powerful performance and a creative curved baffle filter design that easily removes grease, vapor, and odors.

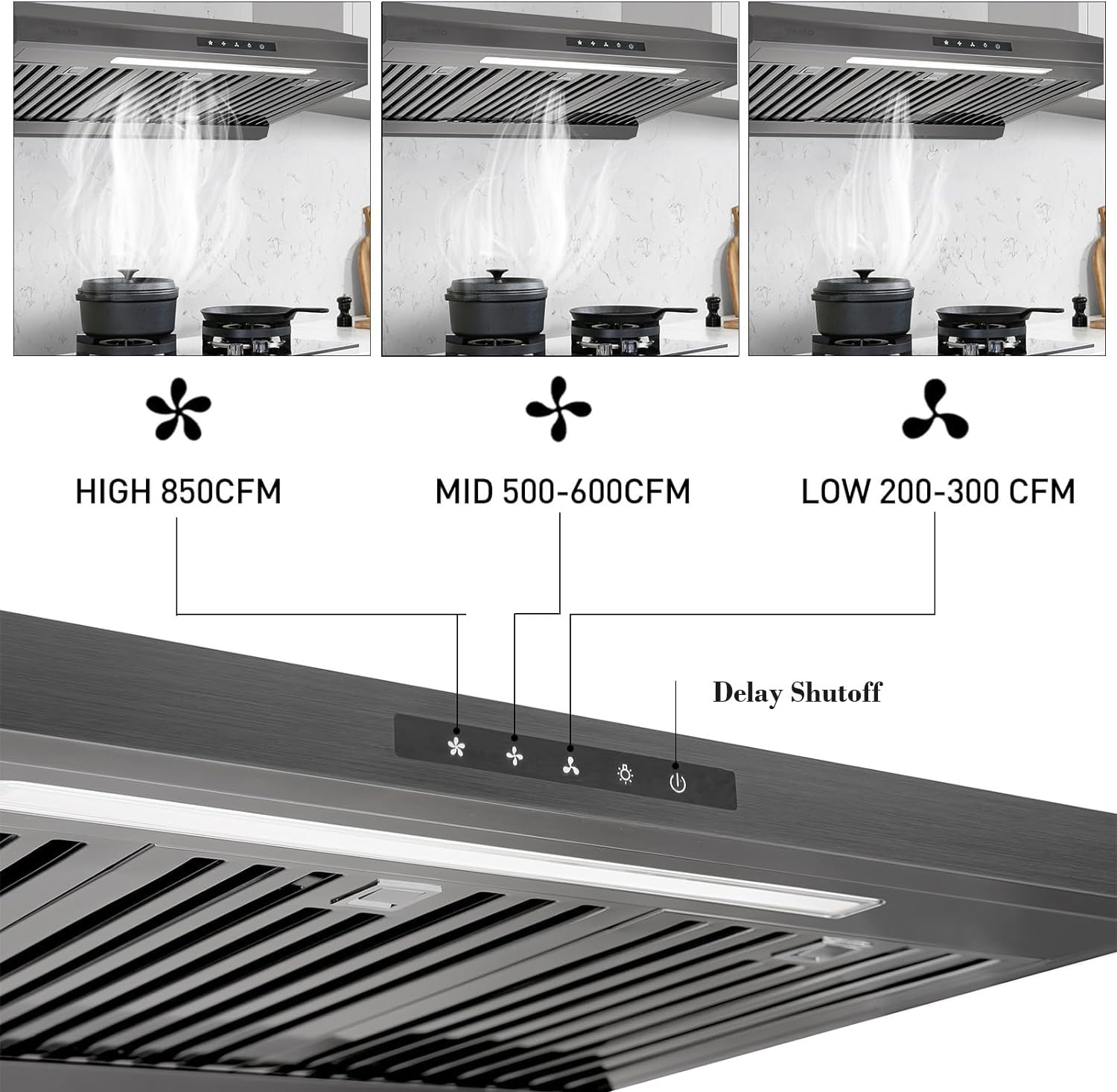

✅ TOUCHSCREEN: The range hood's easy-to-operate touchscreen enables you to turn the light on or off and select from three fan speeds.
✅ EASY TO CLEAN: Equipped with two baffle filters and an oil tray, cleaning and maintenance is a breeze. Just load the filters into the dishwasher for quick and easy cleaning. Plus, the oil tray is designed to catch excess oil, even if cleaning isn’t done regularly—perfect for rental properties or busy households.
✅ 6-INCH ROUND TOP VENT OUTLET: The range hood's 6-inch round top vent outlet fits most standard kitchen pipes.
✅ LONG TERM WARRANTY: The user manual and all accessories are packaged inside the box. Includes a one-year limited factory warranty and a lifetime motor warranty.
Couldn't load pickup availability
Pickup available at 81 Granton Drive, Unit 1
Usually ready in 4 hoursPairs well with
Arlington 30" | Metallic Black
If you have any questions about technical details, dimensions, or shipping, feel free to reach out to us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
• Free Shipping: All range hood orders over $250 CAD qualify for free shipping.
• Standard Shipping: Orders typically ship via UPS Standard.
• Other Categories: Shipping fees for non-range hood products are calculated at checkout.
• Expedited Shipping: Need it sooner? Expedited shipping is available at an additional cost.
• Accessories: A flat shipping fee of $16.99 CAD applies to all accessories. -
Customer Support
If you have any questions or concerns, feel free to reach us directly at 905-886-5858 or service@vesta.kitchen.
-
Troubleshooting
No Electricity After Installation
• Confirm the range hood wiring is correct.
• Check the circuit’s power supply and make sure the fuse is intact.
Vibration During Operation
• Confirm the range hood wiring is correct.
• Check the circuit’s power supply and make sure the fuse is intact.
Weak Suction
• Ensure the exhaust duct is at least 4 inches in diameter, under 10 feet in length, and has fewer than 3 turns. If any of these conditions are not met, it’s likely not a range hood issue.
• Test suction by running the hood without the duct. If it works normally, the duct setup is the problem; otherwise, contact the manufacturer.
• Check that the outlet flap is fully open. If there’s an exterior wind shield, consider removing its flap to prevent airflow obstruction.
Blower Doesn’t Rotate (Light is On)
• This may indicate a circuit board failure. Please contact the manufacturer.
Fan Wheel Stuck or Rattling
• The blower might be touching nearby wires; clean around it to remove any obstruction.
• If the fan is jammed or damaged from shipping, contact the manufacturer. -
Contact Us
We’re here for you Monday–Friday, 9 a.m.–5 p.m. EST. Call us at 1-866‑808‑3782 or email service@vesta.kitchen.
Specifications
| Model Number | VRH-ARLINGTON-30BS |
|---|---|
| Product Name | Arlington 30BS |
| UPC | 675487201792 |
| Nominal Width | 30" |

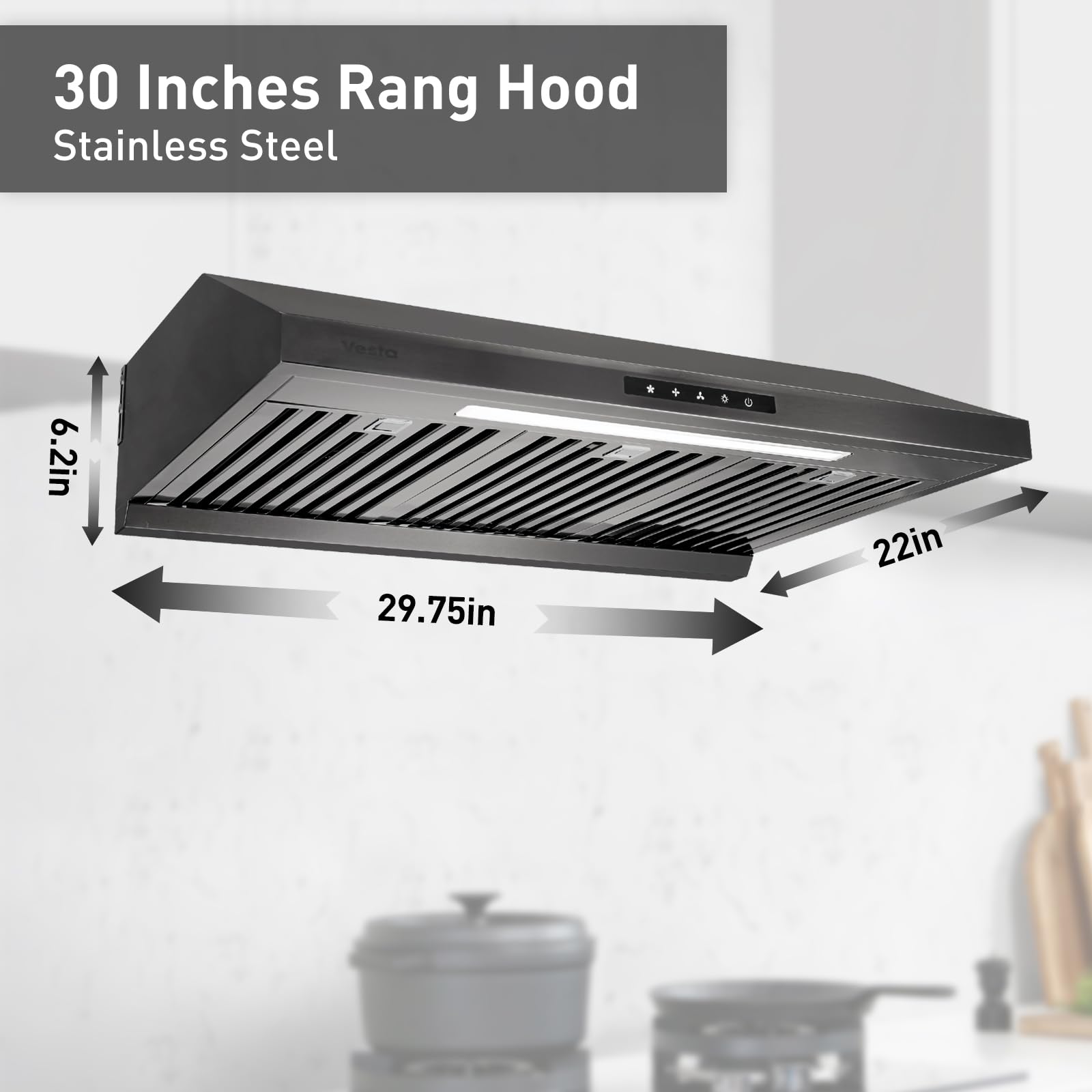

| Hood Dimensions (W×D×H) | 29.7" × 22" × 6.2" |
| Product Net Weight | 14.62 kg |
| Body | Stainless Steel |
| Color/Finish | Metallic Black |
| Installation Type | Under Cabinet |
|---|---|
| Ducting | Ducted |
| Vent Size | 6" |
| Exhaust Configuration | Top (Round) |
| Electrical Requirements | 120V/60Hz |
| Number of Motors | 2 |
|---|---|
| Motor Power | 200 Watts |
| Motor Type | AC |
| Maximum Airflow | 850 CFM |
| Fan Speed Levels | 3 |
| Fan Type | Axial Fan |
| Minimum Noise Level | 35 dB |
| Maximum Noise Level | 67 dB |
| Filter Type | Baffle Filter |
| Number of Filters | 3 |
| Filter Maintenance | Washable |
| Light Type and Wattage | LED, 5 Watts |
| Light Base | Proprietary |
| Number of Lights | 1 |
| Control Type | Touchscreen |
| Handheld Remote | No |
| Oil Tray | Yes |
| Delayed Shut-Off | Yes |
| Warranty (Parts & Labor) | 1 Year |
| Warranty (Motor) | Lifetime |
| Certification | cETL |
Instructions
Installation
Cleaning
Dimensions
User Manual
Download our range hood user manual to find everything you need for a smooth installation and optimal performance. The manual covers:
- Installation Steps: Proper setup procedures and essential precautions
- Operating Instructions: How to use the control panel and adjust fan speeds
- Maintenance Tips: Cleaning intervals, filter replacement, and basic troubleshooting
- Safety Guidelines: Important safety measures for daily operation
Be sure to read the manual thoroughly and keep it on hand for reference. If you need further assistance, our customer support team is here to help.
